Konfig Router Mikrotik untuk Warnet (pisah Game, browsing, dan lain lain)

Konfig Rujukan ;

https://mum.mikrotik.com/presentations/ID15/presentation_2765_1444663037.pdf

Port Game Online Alternatif
https://buananetpbun.github.io/mikrotik/port-game-online-pc-games.html
https://bilhanet.com/daftar-port-game-online-untuk-mikrotik-firewall/

Topologi & Skenario

RB Mikrotik 5 port

Port 1 = konek modem indihome
* DHCP Client Mode
* IP DHCP = 192.168.1.xxx/24
* NAT src-nat, Action = masquerade

Port 2-5 = bridge1 (Local LAN WARNET)
* IP Address = 192.168.2.1/24

Prioritas dibagi menjadi 3 kelompok :
– koneksi TCP port 80 & 443
– koneksi game (TCP &/ UDP)
– koneksi lain-lain

Menandai Koneksi & Paket (Marking dengan Menu Mangle)

  • Buat Mangle unt :
    (1) Port 80 & 443
    • Buat baru βž• Mark Connection =
      Chain = fordward
      Src address = 192.168.2.0/24
      protokol = TCP
      Dst. port = 80 & 443
      action = mark Connection
      New Connection mark = koneksi_port_80_443
      βœ” Passthrough = AKTIF
    • Buat baru βž• Mark Packet =
      Chain = fordward
      Connection mark = koneksi_port_80_443
      action = mark packet
      New Packet mark = paket_port_80_443
      πŸ”² Passthrough = TIDAK AKTIF
  • (2) Koneksi Game Point Blank (contoh saja ; TCP : 39190-39200 UDP : 40000-40010)
    • Buat baru βž• Mark Connection =
      Chain = fordward
      src address = 192.168.2.0/24
      protokol = TCP
      port = 39190-39200
      action = mark Connection
      New Connection mark = koneksi_game
      βœ” Passthrough = AKTIF
    • Buat baru βž• Mark Connection =
      Chain = fordward
      protokol = UDP
      port = 40000-40010
      src address = 192.168.2.0/24
      action = mark Connection
      New Connection mark = koneksi_game
      βœ” Passthrough = AKTIF
    • Buat baru βž• Mark Packet =
      Chain = fordward
      Connection mark = koneksi_game
      action = mark packet
      New Packet mark = paket_game
      πŸ”² Passthrough = TIDAK AKTIF
    • KEMUDIAN LAKUKAN PENAMBAHAN UNTUK GAME2 LAINNYuntuk game2 lainnya
    • APex Legend STEAM = TCP Port 9000
    • Dota = TCP Port 27030
    • Point Blank = TCP Port 39190
    • Valorant =
    • Counter Strike =
    • gta v = Cancel, krn berbayar yg steam’nya
    • PUBG =
    • fortnite =
    • rocketleague =
  • (3) Lain-lain (selain port 80 & 443, selain game)
    • Buat baru βž• Mark Connection =
      Chain = fordward
      src address = 192.168.2.0/24
      action = mark Connection
      New Connection mark = koneksi_lain_lain
      βœ” Passthrough = AKTIF
    • Buat baru βž• Mark Packet =
      Chain = fordward
      Connection mark = koneksi_lain_lain
      action = mark packet
      New Packet mark = paket_lain_lain
      πŸ”² Passthrough = TIDAK AKTIF
Hasil akhir penambahan rule Mangle

Management Bandwidth

Dari ISP, Download = 100Mbps, Upload = 100Mbps, simetris 1:1, tanpa FUP

Gunakan Queue Type Default untuk proporsi atau style pembagian bandwidth

PCQ-Download-default
PCQ-Upload-default

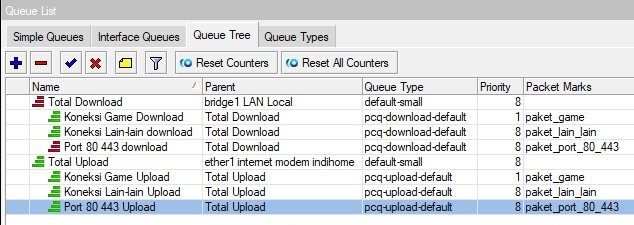

Queue Tree unt Parent (Induk) bandwidth Download & Upload

Parent = bridge 1 LAN unt jalur koneksi LOCAL / LAN

Parent = ether 1 modem indihome untuk jalur ke internet
Skema cara Kerja Mikrotik
buat Rule untuk masing2 kelompok :
- Kelompok port 80 & 443
- Kelompok game
- bandwidth Download & Upload Kelompok port lain-lain
